Copper wire recycling machine

Copper wire recycling machine is a kind environmental protection type machinery, for recycling scrap cable wires to separated copper and plastic through crushing, air separation or electrostatic separation process, without using fire, water or chemical, thus no secondary pollution to the environment.

Copper wire recycling machine

Scope of Application:

All kinds of scrap cable wires

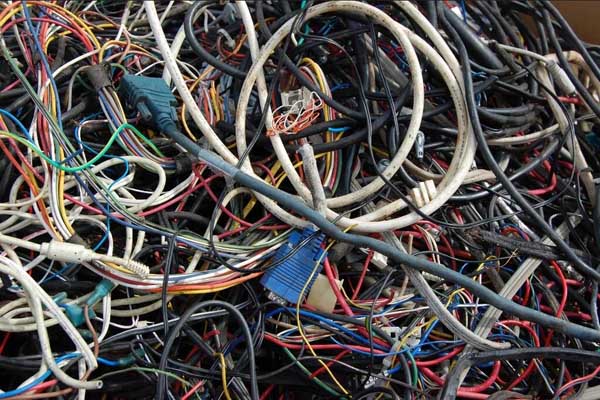

Scrap cable wires

Specification:

Design Features:

1. Integrated type design, with compact structure, small land occupy size, easy to move to anywhere you want;

2. PLC control, easy to operate, one operator is enough;

3. The air separator adopts Italian air suspension separation technology, both the vibration frequency and air supply could be accurately adjusted according to the different materials.

4. Te crusher use SKD-11 alloy blades, the hardness is H85 degree, which could ensure the good toughness under high wear resistance guarantee with the alternated splayed structure. Also the crusher has the circulation water cooling cover which could avoid the melting of the material under high temperature caused by long time crushing.

5. The whole process is under sealed structure with advanced pulse dust collector, which could ensure no dust fly around during the operation.

6. For very thin wires, like car wires which are less than 3mm, we also have the electrostatic separator which could be equipped with the air separator for further separation, thus to fully separate the thin copper left with plastics.

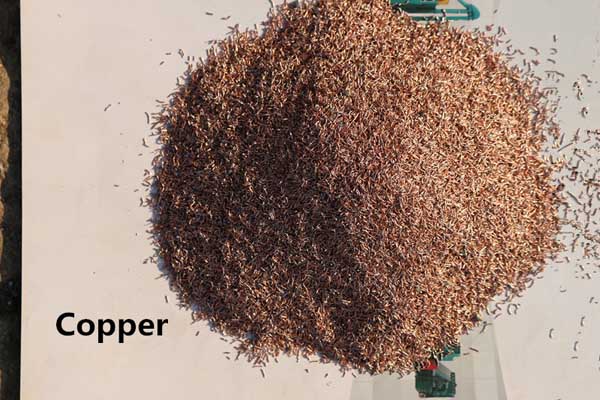

Copper

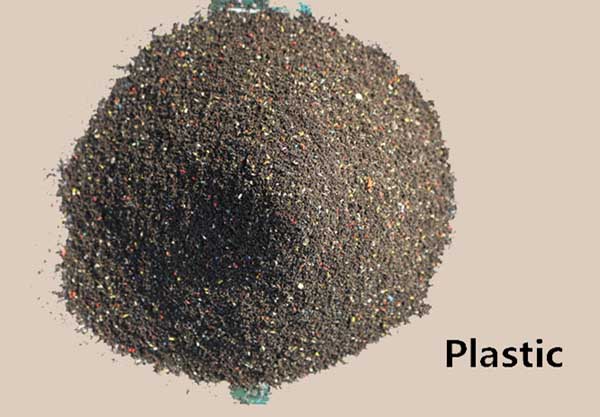

Plastic
